Specifications

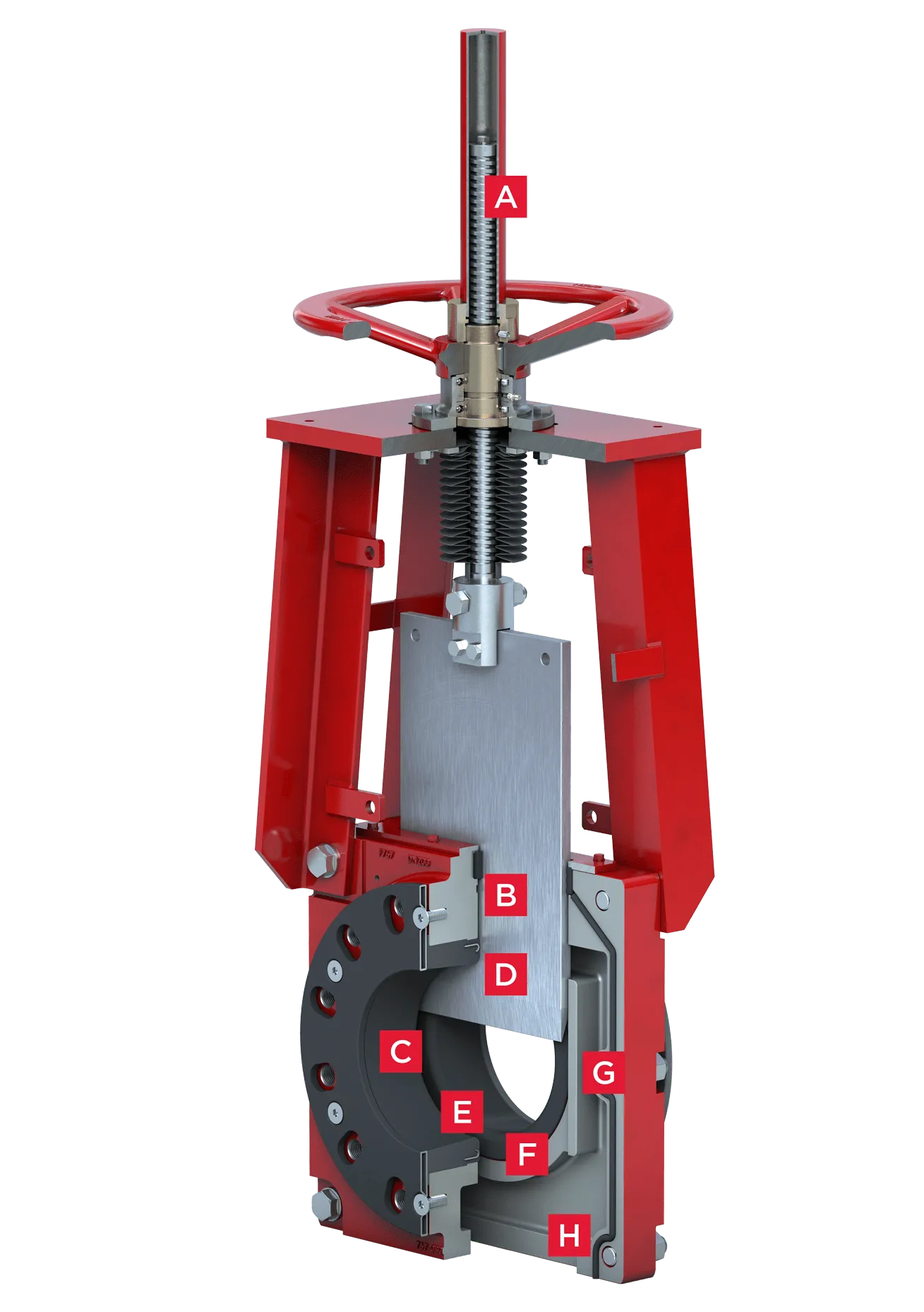

Bidirectional Knife Gate Valve – Series 768
Size Range
NPS 2 to 24 / DN 50 to 600
Body Materials
Ductile Iron, Carbon Steel and Stainless Steel
Maximum Allowable Operating Pressure
NPS 2 to 16: 150psi / DN 50 to 400: 10bar
NPS 18 to 24: 90psi / DN 450 to 600: 6.2bar
(Higher pressures available with select materials)
NPS 18 to 24: 90psi / DN 450 to 600: 6.2bar
(Higher pressures available with select materials)
Stem Materials
304 Stainless Steel
Body Style
Two Piece Bolted: Wafer
Gate Materials
304, 316, 317 Stainless Steel, SAF 2507, SAF 2205, 17-4PH, Hastelloy® C, Monel®,
Seat Material Temperature Range
Natural Rubber: -60° to 165°F (-51° to 74°C)
EPDM: -65° to 248°F (-54° to 120°C)
EPDM: -65° to 248°F (-54° to 120°C)
Design Standard
Manufacturer Standard
Wiper Materials
EPDM
Testing Standard
Manufacturer Standard
Certifications
ATEX, CRN, PED, PE(S)R, TR CU, UA TR
Face to Face
Manufacturer Standard
Actuator Options
Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric
applications
Slurry
