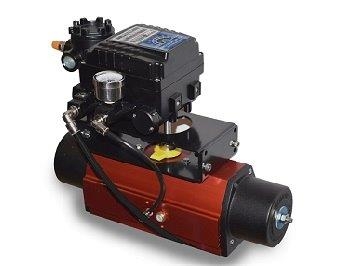

The RC200 is an extremely compact pneumatic actuator. Its scotch yoke design is particularly suited for valves with high start or end torque requirements. It is available in double-acting and spring-return configurations with torque output up to 4,400 Nm (38,900 lbf.in).
The RC200 is available in a variety of configurations and an extensive range of options and accessories is available.
- Compact design in double-acting or spring-return
- Contained spring module for safety and convenience
- Valve mounting dimensions per ISO 5211/DIN 3337
- Pre-tensioned springs for safety
- Connections according to international standards
- Scotch yoke design provides high torque in the end positions
- Three-year warranty
- High efficiency, low air consumption
- Housing in anodised aluminium
- Standard temperature range -20°C to +75°C (-4°F to +167°F)
- Actuators certified in accordance with PED 2014/68/EU
- Actuators certified to ATEX 2014/34/EU
- Certified suitable for use at SIL3 as a single device (IEC 61508)
Options:
- M1 handwheel manual override
- Adjustable travel stops in both directions
- High temp. 0°C to +150°C (+32°F to +300°F)
- Low temp. -40°C to +60°C (-40°F to +140°F)
- Arctic temp. -47°C to +60°C (-52°F to +140°F)
- Water or oil hydraulics
- Over travel
