Solutions for high plant efficiency
- Adaptation of the functional behavior to the operating conditions possible
- Operating pressures up to 97% of set pressures
- Back pressures up to 95% of set pressures
- Low loss of medium during the blow-off process

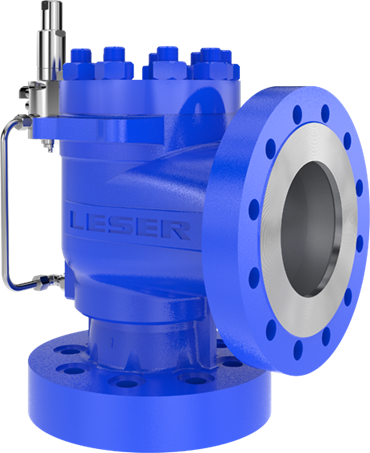

Technical data High Efficiency – Pilot-Operated Safety Valves
| Set pressure |
2.5 – 426 barg | 36 – 6,170 psig | |
| Temperature |
-40 – 200 °C | -40 – 392 °F | |
| Capacity | orifice D to T+ | |
| Connections DIN EN 1092 |
DN 25 to DN 200 | |
| Connections ASME B16.5 |
NPS 1 to NPS 8 | |
| Body material | Carbon steel , Stainless steel |
