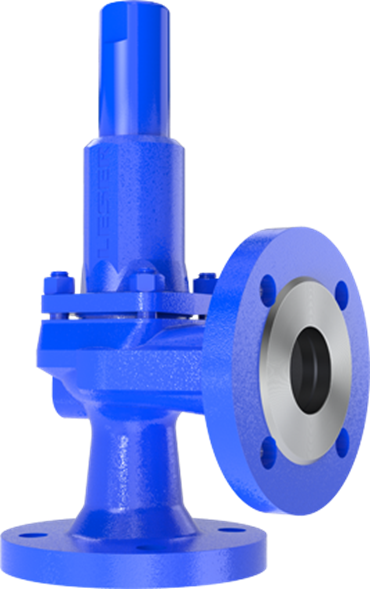

Safety valves primarily for liquid applications
- Identical inlet and outlet connections
- Low loss of medium when opening
- Ideal for thermal expansion
- Backpressure resistance up to 40 bar / 580.15 psig
Technical Data Modulate Action Safety valves
| Set pressure |
0.2 – 160 barg | 2.9 – 2,320.6 psig | |
| Temperature |
-270 – 450 °C | -454 – 842 °F | |
| Capacity | Orifice C- to M+ | |
| Connections DIN EN 1092 |
DN 15 to DN 150 | |
| Connections ASME B16.5 |
NPS 1/2 to NPS 6 | |
| Body material | Grey cast iron, nodular cast iron, carbon steel, stainless cast steel |
