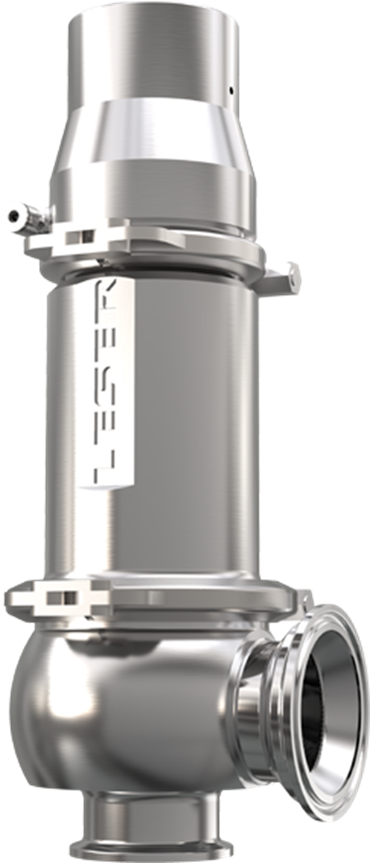

Safety valves for food, beverage, and pharmaceutical applications
- Efficient cleaning due to low dead space ratio, gap-free design of internal parts, surface qualities up to Ra max = 0.375 µm
- Cleaning (CIP) or sterilization (SIP) possible in the process
- Compliant with market-relevant guidelines such as FDA, USP VI and EU directives
- Suitable selection of aseptic connections for your plant
Technical data Clean Service safety valves
| Set pressure |
0.1 – 68 barg | 1.5 – 986 psig | |
| Temperature |
-45 – 250 °C | -49 – 482 °F | |
| Capacity | orifice C- to P | |
| Connections DIN EN 1092 |
Clamp, threaded and flange connections DN 15 to DN 100 | |
| Connections ASME B16.5 |
NPS 3/4 to NPS 4 1/2 | |
| Body material | Stainless steel |
