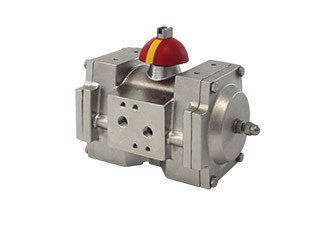

GTS Range single- and double-acting pneumatic piston actuators
Design
- Single- and double-acting pneumatic piston actuators (rack and pinion)
Action
- Standard 90°
Stroke adjustment
- -5° to +5° from 90° position
- Double end stop options
Torques
- 2.4 to 1,190 Nm (10,170 lbf.in)
Air pressure
- 2 to 10 bar
Supply
- Filtered air PNEUROP/ISO class 4, other fluids on request
Materials
- Body and end caps in electro-polished stainless steel 316L
- Pistons in die cast aluminium – optional in stainless steel 316L
- Pinion in stainless steel 316L
Approvals and Industry Standards
- Certified to ATEX 2014/34/EU
