Specifications

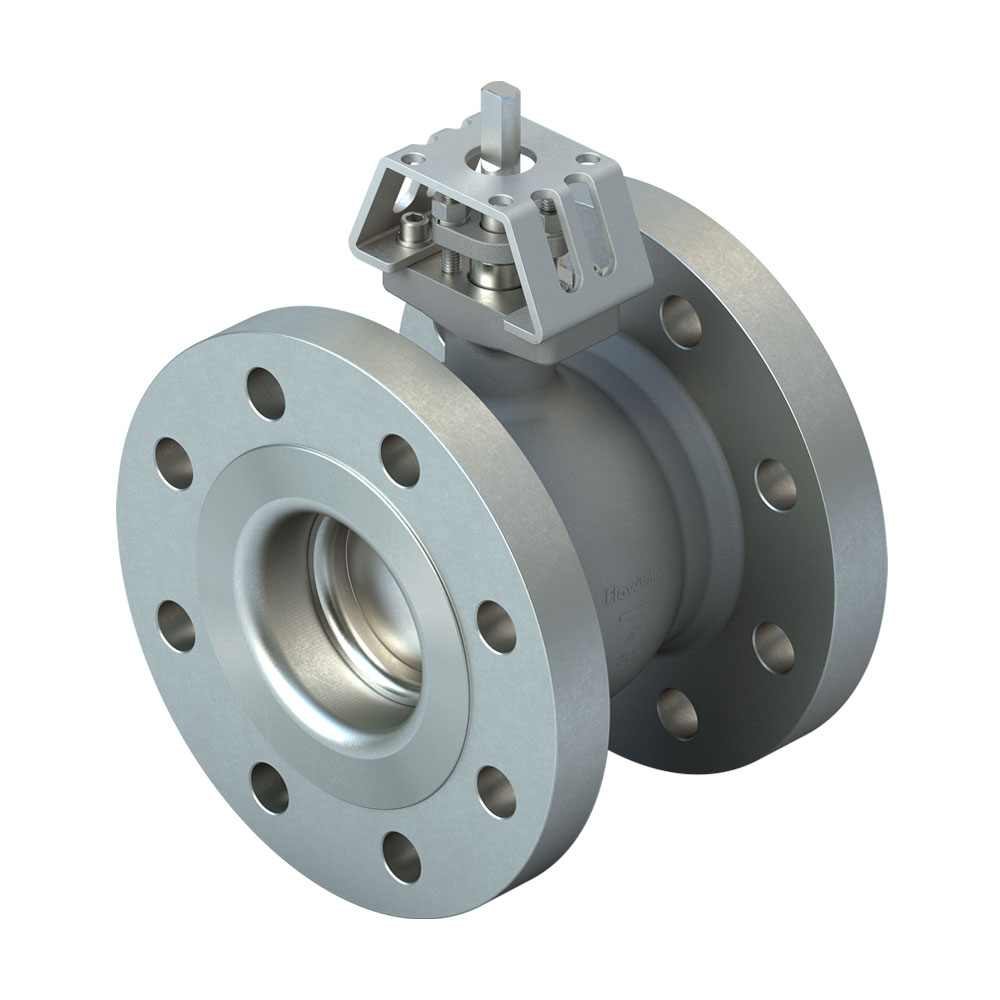

Flanged Ball Valve – Series F15/F30
Size Range
NPS ½ to 12 / DN 15 to 300
Body Materials
Stainless Steel (CF8M), Carbon Steel (WCB), Special Alloys
Temperature Range
-50°F to 650°F (-46°C to 343°C)
Stem Materials
ASTM A479 Type 316
Maximum Allowable Operating Pressure
F15: ASME Class 150
F30: ASME Class 300
PN10, 16, 25, 40
F30: ASME Class 300
PN10, 16, 25, 40
Seat Materials
Standard: TFM 1600
Optional: Tek-Fil®*, PEEK, RPTFE, UHMWPE, Metal
Optional: Tek-Fil®*, PEEK, RPTFE, UHMWPE, Metal
Shutoff Rating
Zero Leakage
Ball Materials
ASTM A351 Gr CF8M
Body Style
Two Piece
Design Standard
ASME B16.34, API 608
End Connections
ASME Class 150, 300
EN 1092 PN10, 16, 25, 40
EN 1092 PN10, 16, 25, 40
Testing Standard
API 598
Certifications
API 607, ATEX, CRN, NACE MR0175, NSF 61/372, PED, PE(S)R, SIL, TR CU
Ports
Full Port
Accessories
Body Cavity Fillers, Media Containment Unit, Resolute Square Ball, V Ball, Globe Valve Face-To-Face
Face to Face
ASME B16.10
applications
Process, Tank Farms, Fueling, Oil & Gas, Municipal Water Supply
